VA Series

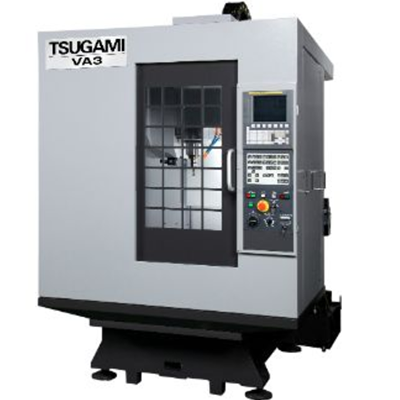

VA3

Features
Standard Specification
  • High Productivity and high speed machining with BT30 Spindle.
  • 48 m/min X, Y and Z axes rapid traverse rate.
  • 20,000 rpm max. spindle speed.
  • The spindle is separated from the ATC arm and the tool magazine.

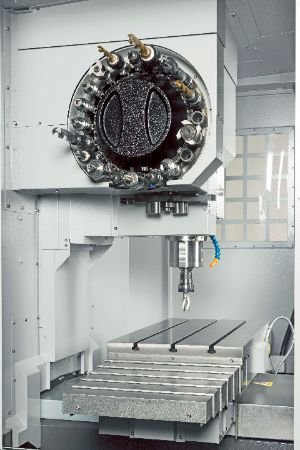

  • Since the tool magazine is fixed to the column top, the position of magazine will not affect the tooling area. Only the spindle moves up and down so that tooling design becomes easy.
  • 20 tools can be stored in the tool magazine as standard.(Maximum mountable tool number: 21 tools).
  • The tool can be inserted directly into the spindle or removed from the spindle manually from the front of the machine.
Standard Specification VA3
X/Y/Z/ axis stroke 400x300x250 mm
Table size 840 x 380 mm
Max. load on table 150 Kg
Spindle speed 200~20,000 min-1
Spindle motor 9.0/3.7 kW
Tool shank JIS B 6339-1998 BT30
Retention knob MAS403-1982 P30T-1
Width x Depth x Height 1,300 x 2,270 x 2,310 mm
Weight 3,300 Kg.

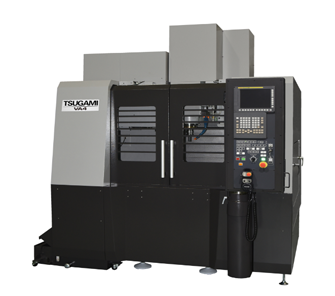

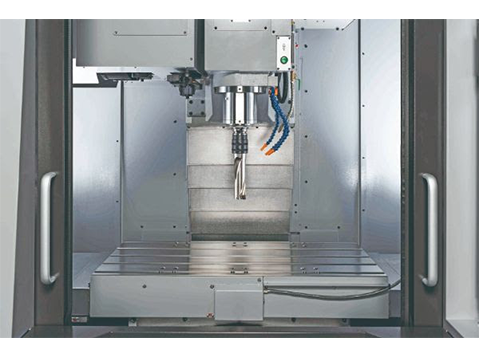

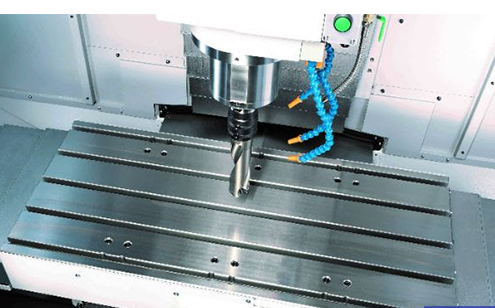

VA4

Features
Standard Specification
Standard Specification VA4
X/Y/Z/ axis stroke 720x510x460 mm
Table size 850 x 510 mm
Max. load on table 800 Kg.
Spindle speed 100~10,000 min-1
Spindle motor 11/15 kW
Tool shank BIG PLUS BBT 40
Retention knob MAS4003-1982 P40T-1
Width x Depth x Height 2,403 x 2,763 x 2,618 mm
Weight 5,500 Kg.
