S20 Series

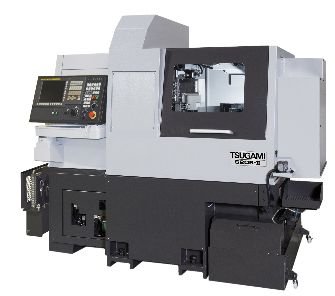

S205-II

Features
Standard Specification

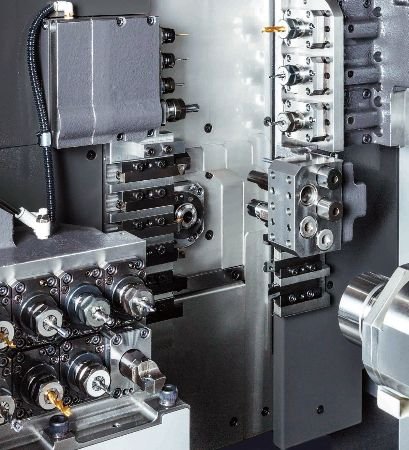

  • Live tools on rear drive and back drive are modular type, and optimum tool allocation is possible.
  • The back tool post with Y axis enables the simultaneous operation of back spindle side complex machining with main spindle side machining.
  • Flexibly responds to workpieces requiring complex back machining.
  • Thanks to the thermal displacement compensation, the long-term stable production is realized.
  • Automatic programming software is provided as standard.
Standard Specification S205-II
Max. machinable dia. Φ 20mm
Main spindle speed 200~10,000 min-
Back spindle speed 200~12,000 min-1
Total number of tools 24

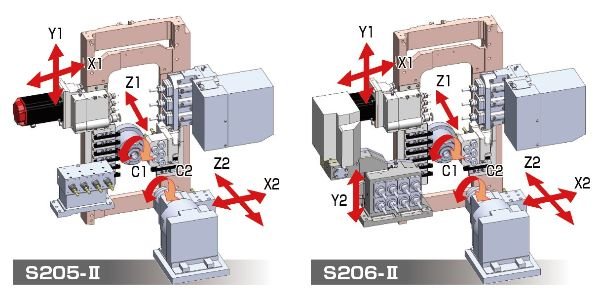

Rapid traverse rate Z1,Z2,X2:32m/min, X1,Y1:24m/min, Y2:15m/min(Only for S206)
Main Spindle motor 2.2/3.7 kW
Number of axis 5
Width x Depth x Height 2,110 x 1,200 x 1,885mm
Weight 3,200 Kg.

S206-II

Features
Standard Specification
  • Live tools on rear drive and back drive are modular type, and optimum tool allocation is possible.
  • The back tool post with Y axis enables the simultaneous operation of back spindle side complex machining with main spindle side machining.
  • Flexibly responds to workpieces requiring complex back machining.
  • Thanks to the thermal displacement compensation, the long-term stable production is realized.
  • Automatic programming software is provided as standard.
Standard Specification S206-II
Max. machinable dia. Φ 20mm
Main spindle speed 200~10,000 min-
Back spindle speed 200~12,000 min-1
Total number of tools 28
Rapid traverse rate Z1,Z2,X2:32m/min, X1,Y1:24m/min, Y2:15m/min(Only for S206)
Main Spindle motor 2.2/3.7 kW
Number of axis 6
Width x Depth x Height 2,110 x 1,200 x 1,885mm
Weight 3,300 Kg.
