Mi08 Series

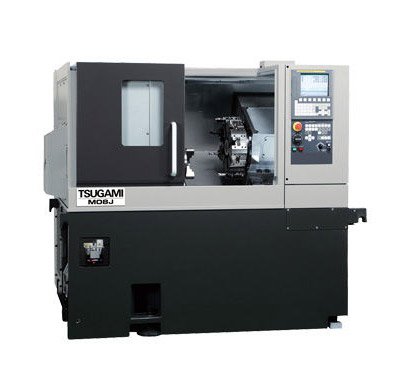

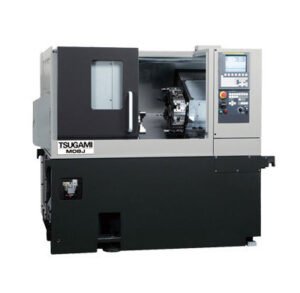

Mi08J-II

Features
Standard Specification
  • Overwhelming cost performance
  • Brilliant cutting capability realizes high productivity.
  • On-board conversational programming software, Turnmate i is prepared as an option.
  • Abnormal load detection function decrease the damage in case of machine crush.
  • Safety setting up by the help of interference prevention function at debug mode.
  • Accurate machining is realized by the thermal distortion compensation function.
Standard Specification Mi08J-II
Max. machinable dia. Φ 280mm
Main spindle speed 200~4,000 min-1
No. of turret stations 8 station turret
Rapid traverse rate X : 24m/min Z :27m/min
Main Spindle motor 9/11 kW
Width x Depth x Height 1,865 x 1,673 x 1,600mm
Weight

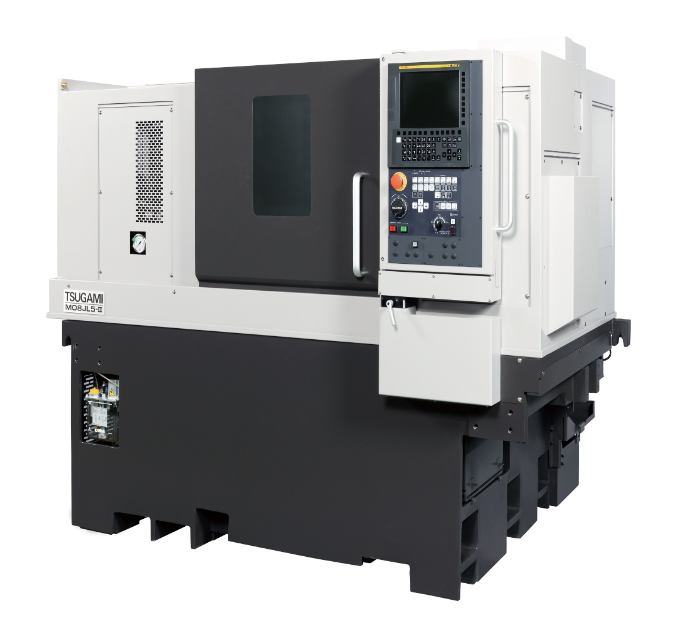

Mi08JL5-II

Features
Standard Specification

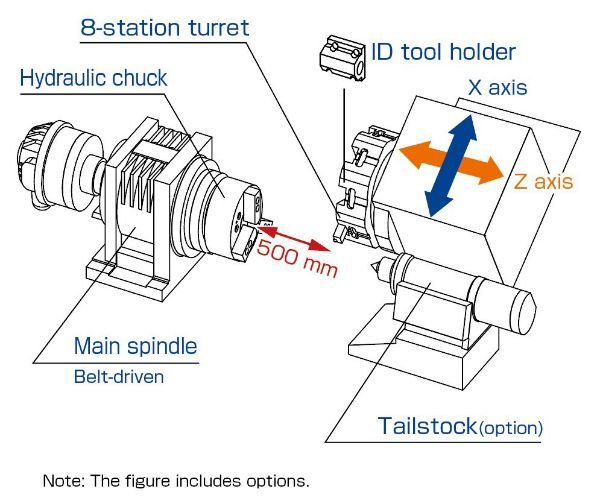

  • Long stroke type suitable for machining long workpieces.
  • Overwhelming cost performance.
  • Brilliant cutting capability realizes high productivity.
  • On-board conversational programming software, Turnmate i is prepared as an option.
  • Abnormal load detection function decrease the damage in case of machine crush.
  • Safety setting up by the help of interference prevention function at debug mode.
  • Thermal displacement compensation function, the long-term stable production is realized.
Standard Specification Mi08JL5-II
Max. machinable dia. Φ 280mm/Φ65 mm(Barstock)
Main spindle speed 200~4,000 min-1
No. of turret stations 8 station turret
Rapid traverse rate X : 24m/min Z :27m/min
Main Spindle motor 9/11 kW
Width x Depth x Height 2,170 x 1,778 x 1,600mm
Weight 3430 kg
