Mi06 Series

Mi06J-II

Features
Standard Specification
  • Overwhelming cost performance
  • Brilliant cutting capability realizes high productivity.
  • On-board conversational programming software, Turnmate i is prepared as an option.
  • Abnormal load detection function decrease the damage in case of machine crush.
  • Safety setting up by the help of interference prevention function at debug mode.
  • Accurate machining is realized by the thermal distortion compensation function.
Standard Specification Mi06J-II
Max. machinable dia. Φ 260mm/Φ 51(B or work)mm
Main spindle speed 200~4,500 min-1

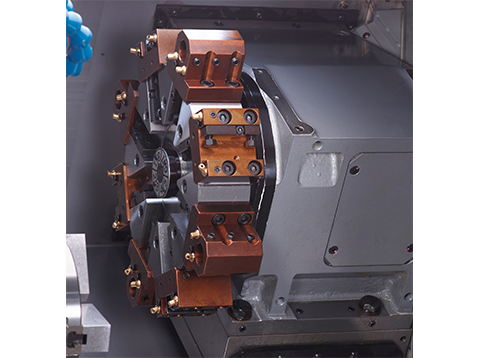

No. of turret stations 8 station turret
Rapid traverse rate X: 24m/min Z : 27m/min
Main Spindle motor 5.5/7.5 kW
Width x Depth x Height 1,865 x 1,673 x 1,600mm
Weight 3,330 Kg.

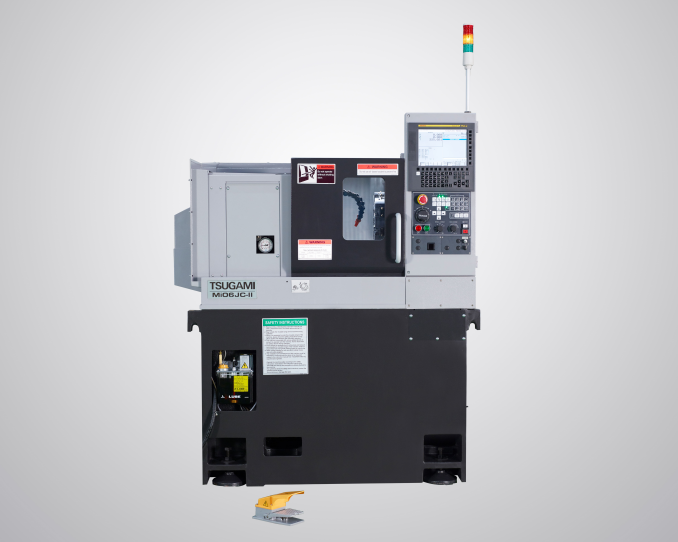

Mi06JC-II

Features
Standard Specification
  • Overwhelming cost performance.
  • Brilliant cutting capability realizes high productivity.
  • On-board conversational programming software, Turnmate i is prepared as an option.
  • Abnormal load detection function decrease the damage in case of machine crush.
  • Safety setting up by the help of interference prevention function at debug mode.
  • Accurate machining is realized by the thermal distortion compensation function.
Standard Specification Mi06JC-II
Max. machinable dia. Φ 220/ Φ 42 (Bar work) mm
Main spindle speed 200~4,500 min-1
No. of turret stations 8 Station Turret
Rapid traverse rate (X,Z:24m/min)
Main Spindle motor 5.5/7.5 kW
Width x Depth x Height 1,265 x 1,560 x 1,650mm
Weight 2,230 Kg.

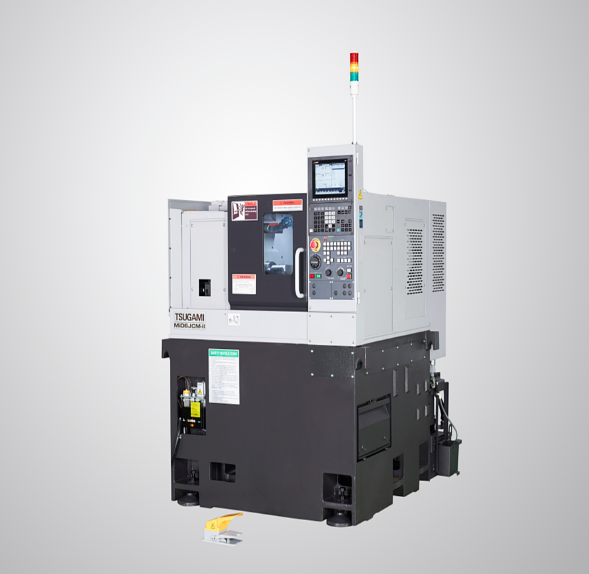

Mi06JCM-II

Features
Standard Specification
  • Compact machining width 1,165mm×height1,650mm.
  • Overwhelming cost performance
  • Brilliant cutting capability realizes high productivity.
  • On-board conversational programming software, Turnmate i is prepared as an option.
  • Abnormal load detection function decrease the damage in case of machine crush.
  • The thermal displacement compensation function, the long-term stable production is realized
  • Available in Mitsubishi controller.
Standard Specification Mi06JCM-II
Max. machinable dia. Φ 220mm/Φ 42(B or work)mm
Main spindle speed 200~4,500 min-1
No. of turret stations 8 station turret
Rapid traverse rate X,Z : 24m/min
Main Spindle motor 5.5/7.5 kW
Width x Depth x Height 1,265 x 1,560 x 1,650mm
Weight 2,230 Kg.
