M08 Series

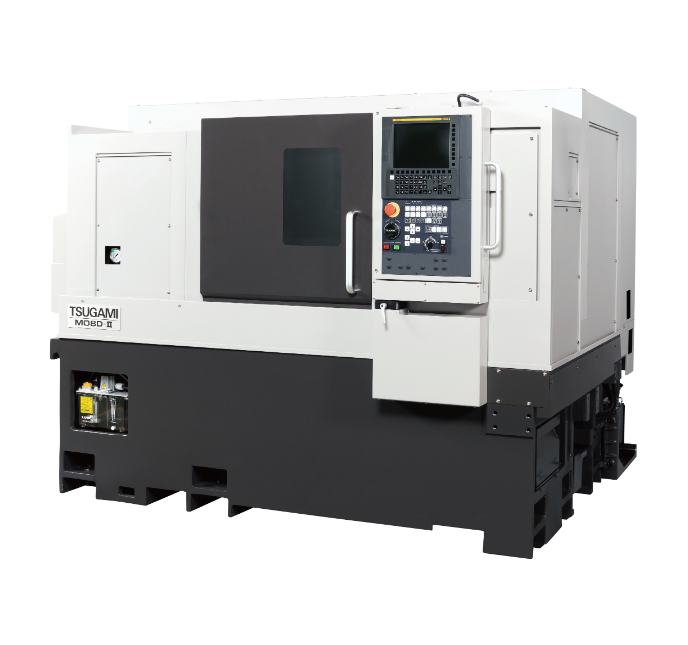

M08D-II

Features
Standard Specification
  • Process integration by the turret with Y axis.
  • Milling tools can be mounted on all positions of 12-station turret.
  • The built-in motor is equipped on the main spindle & Powerful milling capability.
  • Preparing the optional interactive programming software on-board “MANUAL GUIDE i”.
  • Minimizes the damage to the machine with retraction function by abnormal load detection
  • Thermal displacement compensation function, the long-term stable production is realized.
Standard Specification M08D-II
Max. machinable dia. Φ 280mm
Main spindle speed 200~4,500 min-1
No. of turret stations 12 station turret
Rapid traverse rate X : 24m/min Z :27m/min
Main Spindle motor 7.5/11 kW
Width x Depth x Height 2,330 x 1,865 x 1,750mm
Weight 5,000 Kg.

M08DY-II

Features
Standard Specification

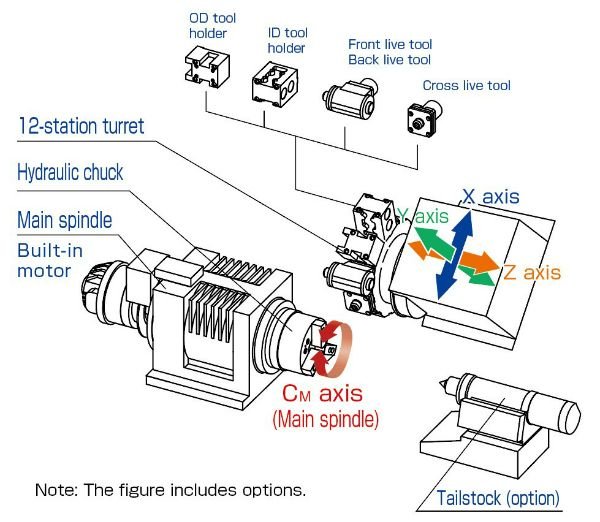

  • Process integration by the turret with Y axis.
  • Milling tools can be mounted on all positions of 12-station turret.
  • The built-in motor is equipped on the main spindle & Powerful milling capability.
  • Preparing the optional interactive programming software on-board “MANUAL GUIDE i”.
  • Minimizes the damage to the machine with retraction function by abnormal load detection
  • Thermal displacement compensation function, the long-term stable production is realized.
Standard Specification M08DY-II
Max. machinable dia. Φ 280 mm/ Φ 65 mm (Barstock)
Main spindle speed 200~4,500 min-1
No. of turret stations 12 station turret
Rapid traverse rate X : 24m/min Z :27m/min
Main Spindle motor 7.5/11 kW
Width x Depth x Height 2,330 x 1,865 x 1,930mm
Weight 5,200 Kg.

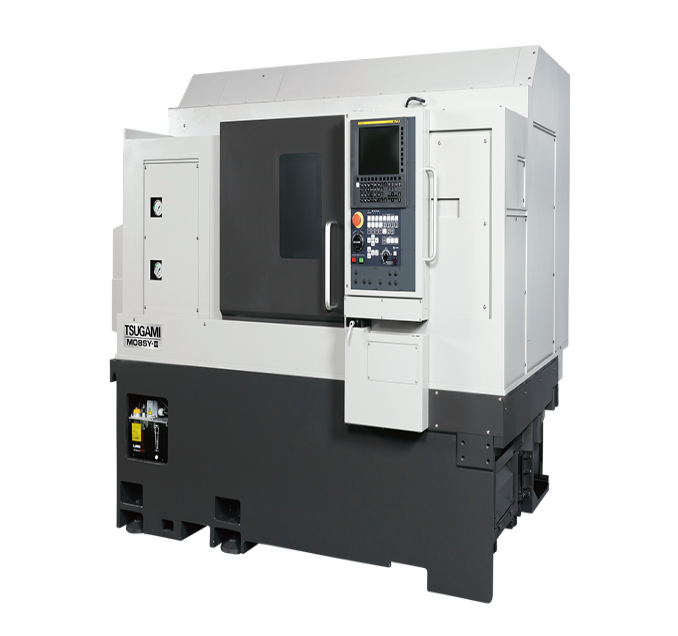

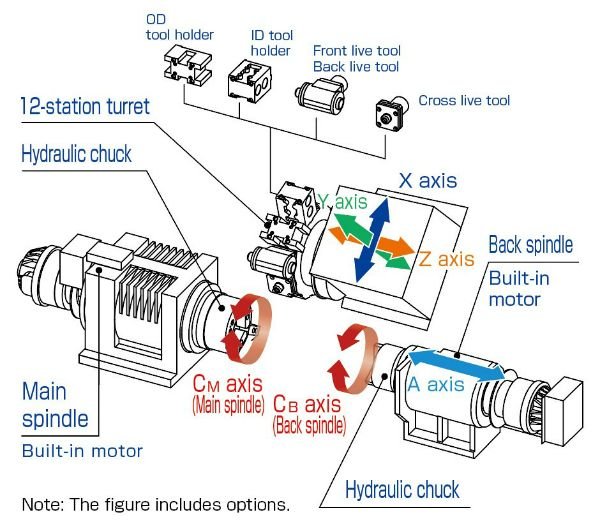

M08SY-II

Features
Standard Specification
Standard Specification M08SY-II
Max. machinable dia. Φ 280 mm
Main spindle speed 200~4,500 min-1
Back spindle speed 200~4,500 min-1
No. of turret stations 12 station turret
Rapid traverse rate X : 24m/min Y :12m/min Z : 27m/min A : 30m/min
Main Spindle motor 7.5/11 kW
Width x Depth x Height 2,470 x 1,865 x 1,930mm
Weight 5,900 Kg.
