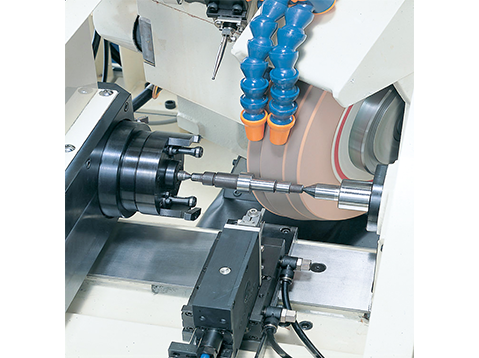

G18 Series

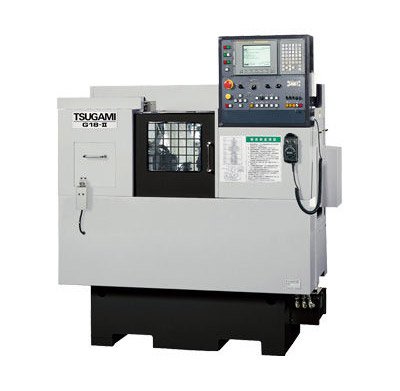

G 18- II

Features
Standard Specification
  • CNC cylinderical grinding machine for shaft type components.
  • Wheel O.D. 355mm max. width 50mm.
  • Suitable for mass production of components.
  • Autoloading systems can be integrated with the machine optionally, including workstockers and robots.
  • Three variant – Straight Wheel head ( SB ) , angular wheeel head ( AB ) and twin head ( FB ).
  • Maimum workpiece diameter upto 50 mm and length upto 250 mm.
Standard Specification G 18- II
Swing (diameter) 180 mm
Distance between centers 250 mm
Grinding wheel ODxMax width 355×50 mm
Surface speed 2,700m/min
Rapid traverse rate (X/Z) 8/16m/min
Wheel spindle motor 2.2 kW
Width x Depth 1,460 x 2,085
Weight 2,000 Kg

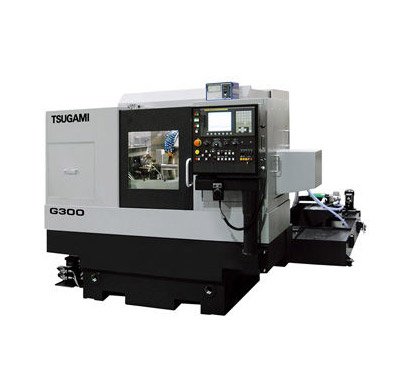

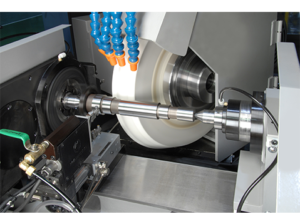

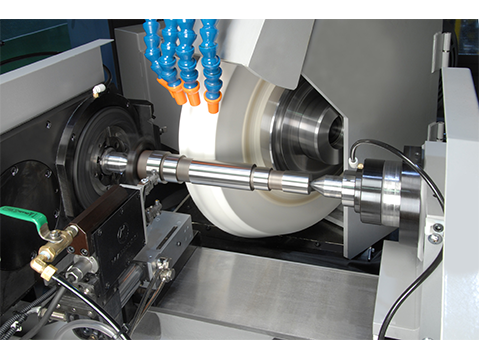

G300

Features
Standard Specification
  • V-Flat guide ways of the slide assure accurate, consistent and smooth movement.
  • Optimum not only for precision grinding but also heavy duty grinding.
  • G300: Max. wheel dia φ510.
  • wheel spindle motor: standard 11 kW.
  • Automated systems can be interfaced optionally.
  • Grinding pattern input software is included as a standard along with the machine.
Standard Specification G300
Swing (diameter) 300 mm
Distance between centers 500 mm
Grinding wheel ODxMax width S:405 x 75, A:510 x 100
Surface speed 2,700m/ min
Rapid traverse rate (X/Z) X axis 16m/min, Z axis 20m/min
Headstock standard type Dead / live changeover type
Dimension of center (headstock) MT No.4
Max. travel (tailstock) 200mm (Amount of manual center distance adjusting), 40mm (Hydraulic)
Dimension of center (tailstock) MT.No.4
Wheel spindle motor 7.5 kW
Work spindle motor 1.6 kW
Width x Depth 2,825 x 3,740
Weight 5,000 Kg.

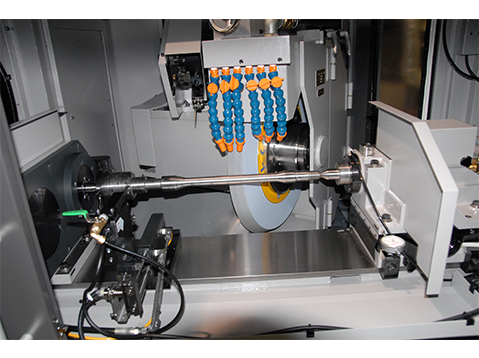

G350

Features
Standard Specification
  • V-Flat guide ways of the slide assure accurate, consistent and smooth movement.
  • Optimum not only for precision grinding but also heavy duty grinding.
  • G300: Max. wheel dia φ510.
  • wheel spindle motor: standard 11 kW.
  • Automated systems can be interfaced optionally.
  • Grinding pattern input software is included as a standard along with the machine.
Standard Specification G350
Swing (diameter) 300 mm
Distance between centers 500 mm
Grinding wheel ODxMax width S:405 x 75, A:510 x 100
Surface speed 2,700m/ min
Rapid traverse rate (X/Z) X axis 16m/min, Z axis 20m/min
Headstock standard type Dead / live changeover type
Dimension of center (headstock) MT No.4
Max. travel (tailstock) 200mm (Amount of manual center distance adjusting), 40mm (Hydraulic)
Dimension of center (tailstock) MT.No.4
Wheel spindle motor 7.5 kW
Work spindle motor 1.6 kW
Width x Depth 2,825 x 3,740
Weight 5,000 Kg.
