Features

Standard Specification

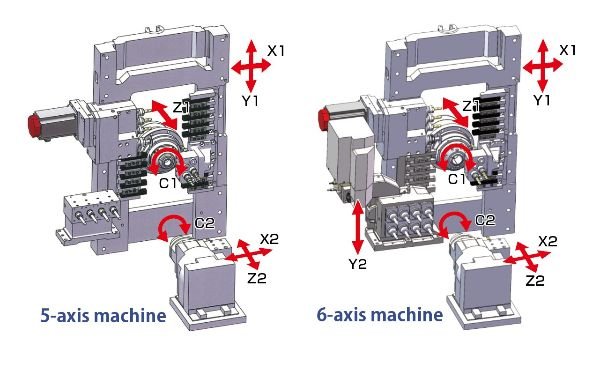

The back tool post with Y axis enables the simultaneous operation of back spindle side complex machining with main spindle side machining. (6-axis machine)
Modular type live tools can be arranged onto the rear tool post and the back tool post. The suitable tools and position can be selected according to the workpiece.
Optional direct-drive rotary guide bushing provides highspeed and accurate machining.
Guide-bush type or guide-bushless type is selectable. （L type is exclusive guide-bushless machine）
Software is fully installed as standard for simpliﬁed operation.
Automatic programming software is prepared as standard.
Optional oscillation cutting function is available for breaking swarf into pieces.

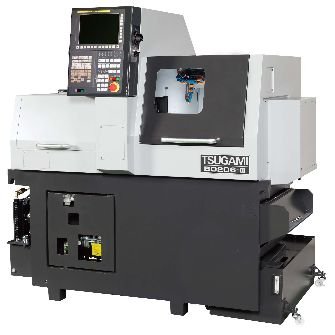

Standard Specification	B0265-III
Max. machinable dia.	Φ 26mm
Main spindle speed	200~10,000 min-1
Back spindle speed	200~10,000 min-1
Total number of tools	27
Rapid traverse rate	35m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Number of axis	5
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Weight	4000 kg

Features

Standard Specification

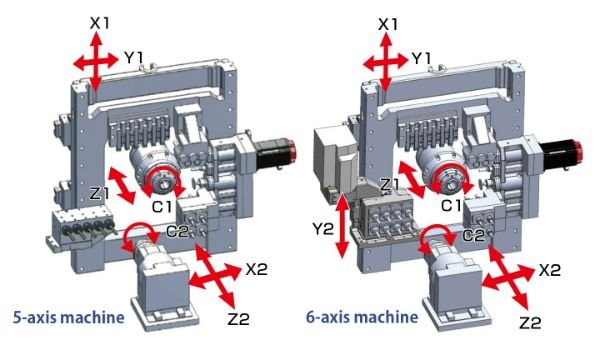

The Completely simultaneous processings are possible between main and back spindles for complex machining thanks to the Y-axis of back tool post. (6-axis machine)
Modular type live tools can be arranged onto the 5-spindle cross live tools and the back tool post. The suitable tools and position can be selected according to the workpiece.
Optional direct-drive rotary guide bushing provides highspeed and accurate machining.
Guide-bush type or guide-bushless type is selectable according to workpieces. （L type is exclusive guide-bushless machine)
Software is fully installed as standard for simpliﬁed operation.
Automatic programming software is prepared as standard.
Optional oscillation cutting function is available for breaking swarf into pieces.

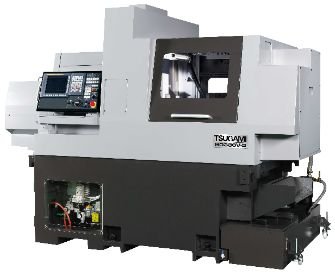

Standard Specification	B0265V-III
Max. machinable dia.	Φ 26mm
Main spindle speed	200~12,000 min-1
Back spindle speed	200~10,000 min-1)
Total number of tools	22
Rapid traverse rate	35m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Number of axis	5
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Weight	4000 kg

Features

Standard Specification

The back tool post with Y axis enables the simultaneous operation of back spindle side complex machining with main spindle side machining. (6-axis machine)

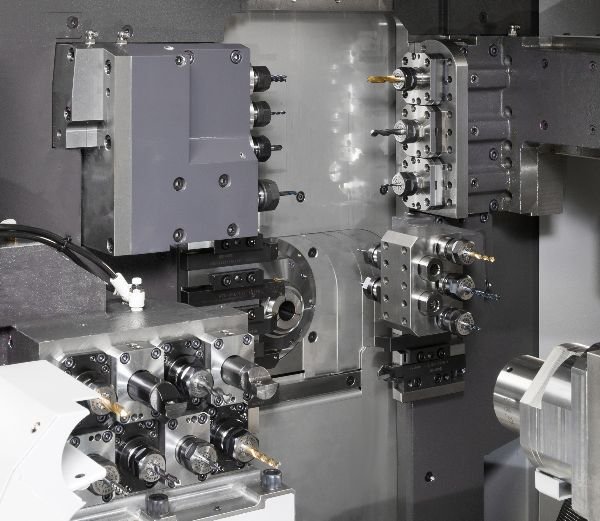

Modular type live tools can be arranged onto the rear tool post and the back tool post. The suitable tools and position can be selected according to the workpiece.
Optional direct-drive rotary guide bushing provides highspeed and accurate machining.
Guide-bush type or guide-bushless type is selectable according to workpieces. （L type is exclusive guide-bushless machine)
Software is fully installed as standard for simpliﬁed operation.
Automatic programming software is prepared as standard.
Optional oscillation cutting function is available for breaking swarf into pieces.

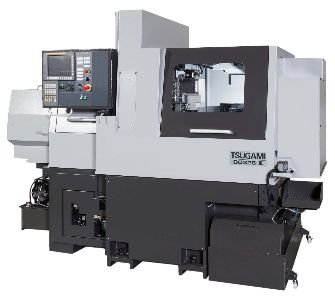

Standard Specification	B0266-III
Max. machinable dia.	Φ 26mm
Main spindle speed	200~12,000 min-1
Back spindle speed	200~10,000 min-1)
Total number of tools	31
Rapid traverse rate	35m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Number of axis	6
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Weight	4000 kg

Features

Standard Specification

Completely simultaneous processings are possible between main and back spindles for complex machining thanks to the Y-axis of back tool post. (6-axis machine)

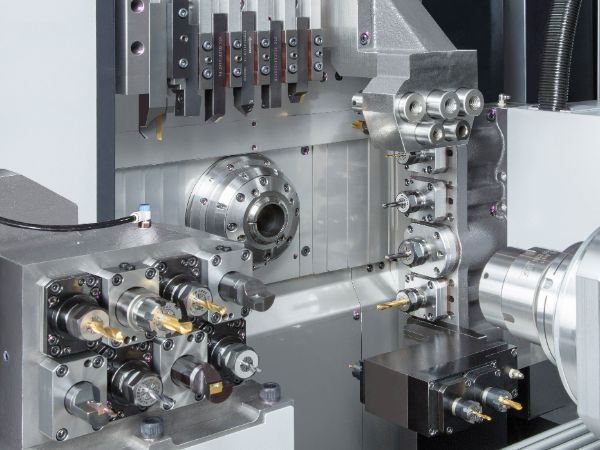

Modular type live tools can be arranged onto the rear tool post and the back tool post. The suitable tools and position can be selected according to the workpiece.
Optional direct-drive rotary guide bushing provides highspeed and accurate machining.
Guide-bush type or guide-bushless type is selectable according to workpieces. （L type is exclusive guide-bushless machine)
Software is fully installed as standard for simpliﬁed operation.
Automatic programming software is prepared as standard.
Optional oscillation cutting function is available for breaking swarf into pieces.

Standard Specification	B0266V-III
Max. machinable dia.	Φ 26mm
Main spindle speed	200~12,000 min-1
Back spindle speed	200~10,000 min-1)
Total number of tools	26
Rapid traverse rate	35m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Number of axis	6
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Weight	4000 kg
