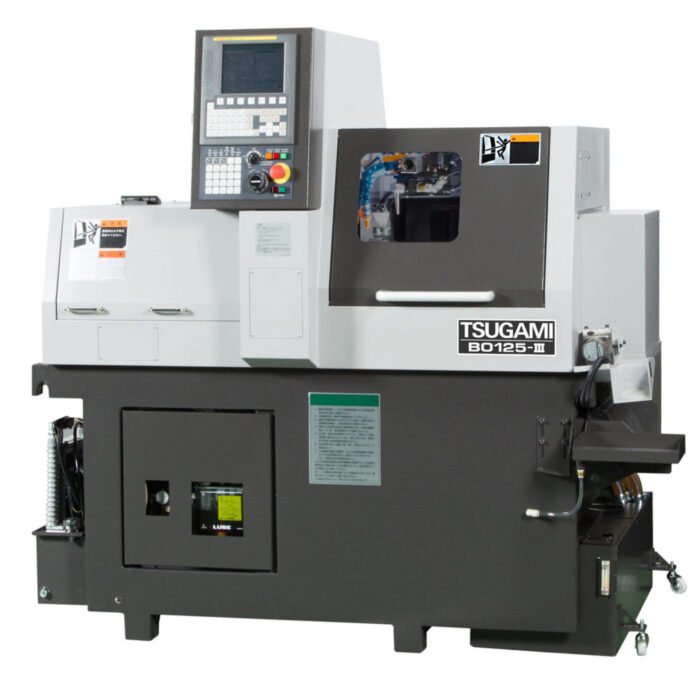

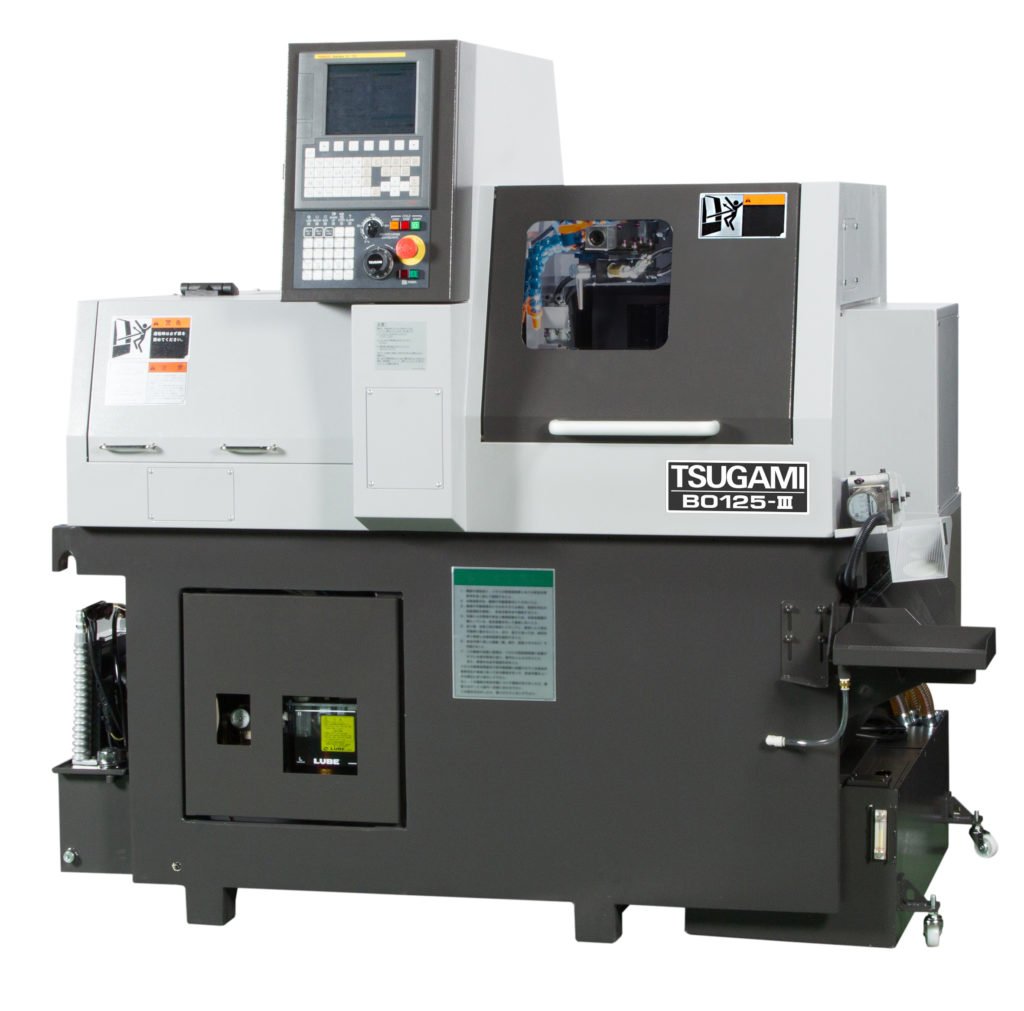

| Standard Specification | B0125-III | |
|---|---|---|
| Max. machinable dia. | Φ 12mm | |
| Main spindle speed | 200~12,000 min-1 | |
| Back spindle speed | 200～12,000min-1 | |
| Total number of tools | 21 | |
| Rapid traverse rate | 32m/min (X1:24m/min) | |
| Main Spindle motor | 1.5/2.2 kW | |
| Width x Depth x Height | 1,655 x 1,135 x 1,700mm | |
| Weight | 2,000 Kg. | |
